About Pilot-BIM

Pilot-BIM system is a client-server data management system based on Building information modeling (BIM) technology. It includes Pilot-Server, Pilot-BIM-Server, Pilot-Web-Server, Pilot-myAdmin application, СadFarmApp module and Pilot-BIM client application.

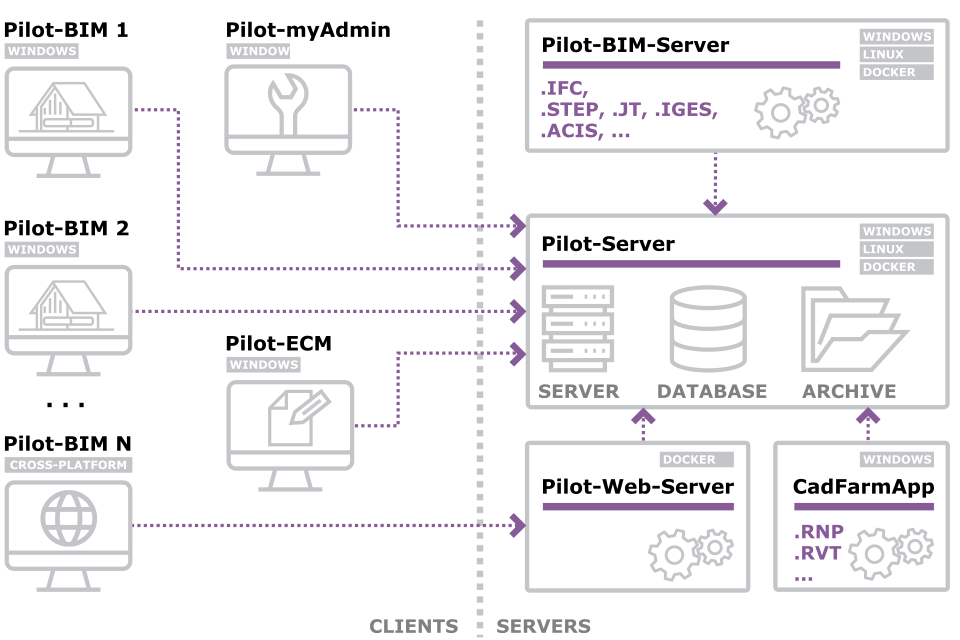

Pic. 1. Schematic diagram of the Pilot-BIM client-server system.

You can find out about the purpose and capabilities of Pilot-Server, Pilot-Web-Server and Pilot-myAdmin here.

Pilot-BIM-Server:

  • monitors the appearance and updating of IFC files on the Pilot Server, ensuring the relevance of the information model;
  • builds tessellations: converts the B-rep described in the IFC file into a triangulation representation of a BIM object;
  • creates and modifies indexed BIM objects in the Model database (Model DB);
  • when the IFC file is updated: it compares the models versions which were changed, calculates the difference in the Model DB, rebuilds tessellations and changes indexed objects in the database only for modified objects.

Pilot-BIM:

  • provides an interface for user interaction with the information model;
  • is a tool for delivering content to the server;
  • automatically builds a consolidated model to ensure consistency of the different project parts and detect problems at an early stage;
  • Information model tab allows:
    • to navigate through the 3D representation of the consolidated model and control its display;
    • to get access to the properties of the BIM objects;
    • to add comments directly to the 3D-model objects;
    • to compare versions of the information model;

Pilot-BIM purpose

The constantly evolving Pilot-BIM database contains data from information models of capital construction facilities.

At the "Design" stage, Pilot-BIM is used for:

  • automation of business processes of the project organization;
  • collective development of design and estimate documentation;
  • coordinated assembly of the consolidated model;
  • visual check for collisions (intersections).

Pilot-BIM is not that

  • It is not a CAD. It is not intended for modeling and drawing.
  • It is not a means of joint modeling in CAD. It does not differentiate access rights within CAD.
  • It does not create IFC format files.
  • It does not IFC-viewer.
